Sheet Metal Fabrication Sheet Metal Enclosures

We develop creative, comprehensive and economic solutions for custom metal processing projects.

Sheet Metal Fabrication Sheet Metal Enclosures

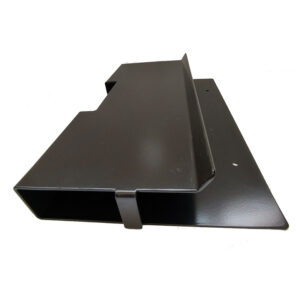

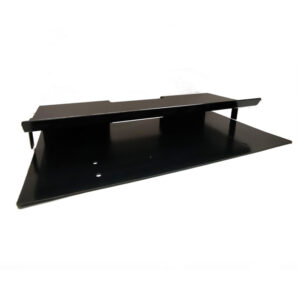

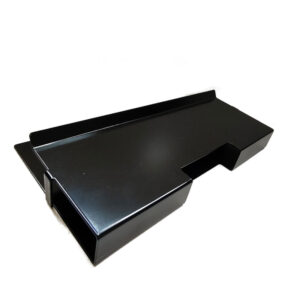

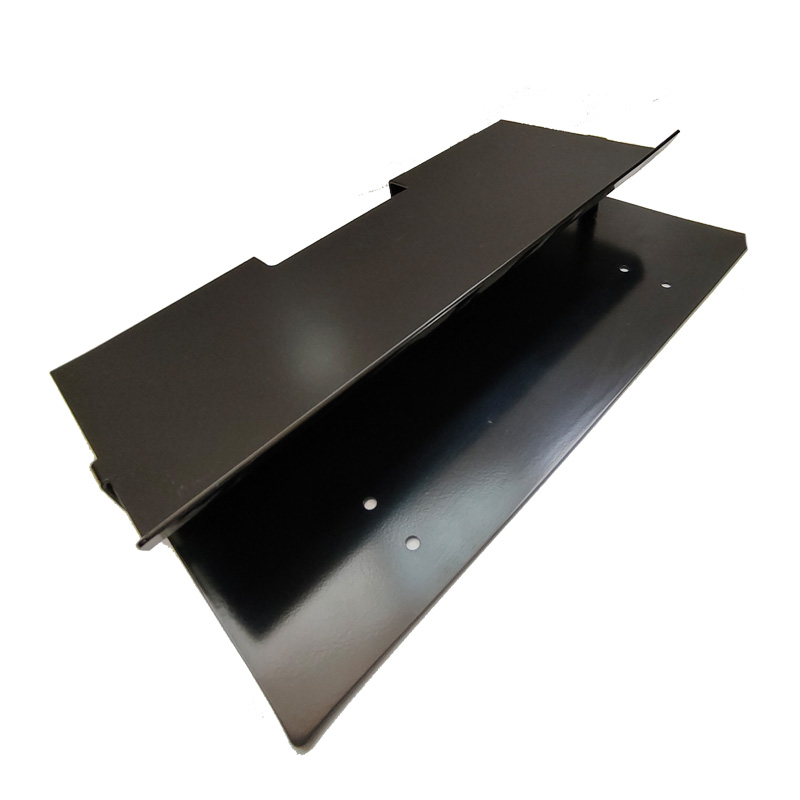

Sheet Metal Enclosures

get a quote

Product Details

  • Sheet Metal Fabrication Sheet Metal Enclosures
  • Jiantong is also focus on manufacturing Custom sheet metal fabrication enclosures according to customers’ requirement. Material contains steel, stainless steel, galvanized steel with laser cutting, bending, welding, riveting, assembly, powder coating etc.
  •
  • Key features:
    • Smooth edges and corners
    • Superior waterproof performance and corrosion resistance
    • Aesthetic appearance
    • long-lasting durability

  • Applications:
    • Mailboxes & electrical boxes
    • Outdoor equipment enclosures
    • Water dispenser housings
    • Power distribution cabinets
    • Access control sensor housing

  • Other Value-added service:
    • Logo/silk screen printing
    • Tailored designs to meet specific requirements
    • Customized labels and packages

  • Sheet Metal Fabrication ：

    （12000W laser cutting equipment + 160T CNC bending equipment)

    laser cutting、bending、welding、powder coating

    Thickness:0.5mm-12mm General Tolerance: +/-0.1-0.5mm or acc.to requirement.

    Processing method: Laser cuting, bending, forming, welding, riveting, PEM stamping, assembly

    Surface treatment: powder coating, anodize, zinc/nickel/tin chrome plating, polishing, black paint

    Main products include: frame, cabinet, enclosure, mail box, bracket, dust cover, metal casing,electric box,pest control products.

  • High precision progressive die stamping line
  • Tonnage：110T、125T、160T、200T、400T、630T
  • Processing：1000mm*2500mm*500mm
  • Advantages：High precision,automatic feeding,stable process capability
  • Accuracy：0.02mm
  • Usage：Variou sprecision deep drawn parts manufacturing,materials available:steel,copper,stainless steel,aluminum etc.
  • Product srange：automotives,home appliance,water pump,medical devices.
  • Material Selection for Spray Coating in Sheet Metal Fabrication
  • The quality of spray coating not only affects the product’s appearance but also directly impacts its durability and functionality. Therefore, when tackling challenging spray coatings, systematic planning and execution are required, encompassing multiple aspects, including material selection, process optimization, equipment configuration, and personnel skills.
  • Material Selection and Pretreatment
  • Sheet metal materials vary widely, including stainless steel, aluminum alloy, and galvanized sheet. The surface properties of each material significantly influence the spray coating results. Material pretreatment is particularly important in challenging spray coatings. The following are several key steps:
  • – Surface Cleaning: Before spraying, the surface of the material must be thoroughly cleaned of oil, rust, and impurities. Chemical cleaning, mechanical polishing, or sandblasting can be used to ensure a clean and contaminant-free surface.
  • – Surface Treatment: For certain special materials, such as aluminum alloys, anodizing or chemical conversion treatment may be required to enhance the coating’s adhesion.
  • – Anti-Rust Treatment: For materials prone to rust, phosphating or passivation treatment can be performed before spraying to improve the coating’s corrosion resistance.
  • Materials
IronA36, 45#, 1213, 12L14, 1215 etc.
SteelMild Steel, Carbon Steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.
Stainless steelSS304,SS304L, SS316, SS316L,SS201,SS301,SS303,SS430,SS439 etc.
AluminumAL6061, Al6063, AL6082, AL7075, AL5052 etc.
CopperC10100,C10200,C11000,C12000,C12000, C36000 etc.
BrassHPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
Spring Steel70# steel,1075,65MN,T9A.etc
Surface Treatment
SteelZinc Plating, Oxide Black, Nickel Plating, Chrome Plating, Powder Coated electro painting,sliver plating,golden plating,polish etc
AluminumClear Anodized, Color Anodized, hard color anodized,Sandblasted Anodized, Brushing,Polishing,power coating,brushed
Stainless steelPolishing, Brushed,Passivating, Sandblasting, Laser Engraving
